UTECH VENUS V8 Ultra 40MP 3D Skin Analyzer for Aesthetic Medicine
Product Introduction
The UTECH VENUS V8 Ultra is a professional-grade facial skin analysis system that launches a DSLR-grade imaging revolution in aesthetic medicine. Designed specifically for medical aesthetic institutions, skin management centers, and minimally invasive beauty clinics, the V8 Ultra is built around a 40-megapixel high-definition DSLR camera — the highest imaging resolution across the entire UTECH product lineup — to capture every microscopic detail of the skin with unprecedented clarity.
At the core of the V8 Ultra is its DSLR-grade imaging engine. Where conventional skin analyzers rely on standard industrial cameras, the V8 Ultra deploys a professional 40MP DSLR sensor that achieves a full-face resolution of ≥40 million pixels. This leap in resolution means that fine wrinkles, early-stage pigmentation, subtle texture irregularities, and microscopic pore changes — details that lesser systems simply cannot resolve — are captured with crystal-clear precision. The result is a fundamentally higher standard of diagnostic accuracy for clinics where treatment decisions depend on detecting the smallest skin changes.
DSLR-Grade Imaging Architecture

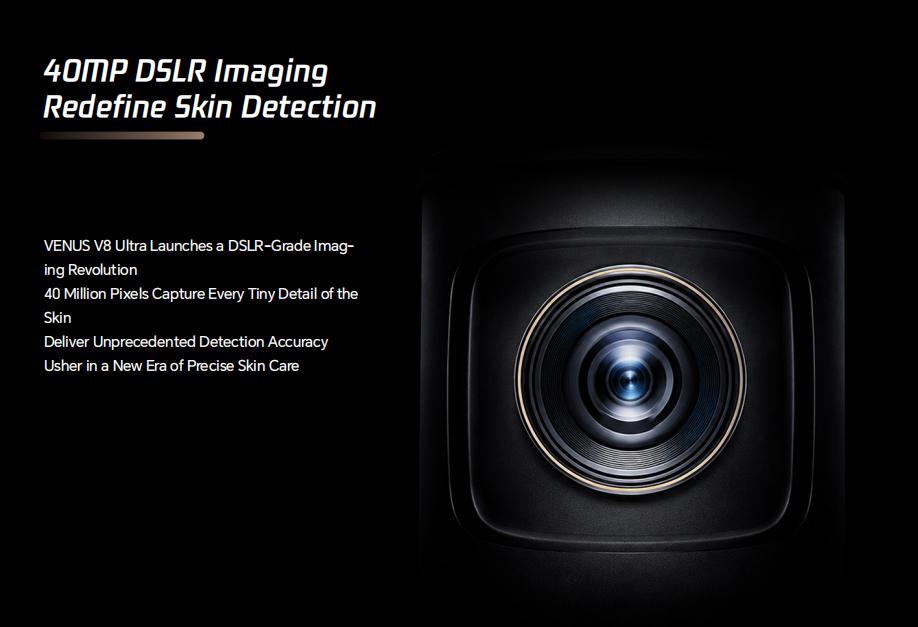

40MP DSLR Camera Imaging — Industry-Leading Resolution
The V8 Ultra is equipped with a professional 40-megapixel DSLR camera — the highest resolution in the entire UTECH product family. This DSLR-grade sensor captures full-face imagery at ≥40 million pixels, resolving fine wrinkles, early pigmentation, subtle pore variations, and microscopic texture details that standard-resolution analyzers cannot detect. For medical aesthetic clinics where treatment plans hinge on detecting the smallest skin changes, this level of clarity is not a luxury — it is a clinical necessity.
4 Spectral Bands, 12+1 Multispectral Imaging Modes
With four spectral bands working in concert, the system covers the full diagnostic spectrum — from surface-level texture to deep subcutaneous pathology.
Clinical AI Analysis & Decision Support
Multi-Large-Model AI — 7-Axis Clinical Skin Assessment
An innovative AI engine powered by multi-large-model fusion technology comprehensively analyzes skin data across 7 dimensions — delivering professional-grade assessment in just 1 second. By leveraging a tens-of-millions-level reference database, the system identifies pathological causes, recommends treatment approaches, and suggests appropriate aesthetic procedures for each detected concern — transforming raw imaging data into actionable, revenue-driving consultation intelligence.
Four Diagnostic Axes — Clinical Assessment Framework
Diagnostic output is organized across four clinical axes, each targeting a distinct domain of skin pathology. The Sensitivity axis flags vascular reactivity — telangiectasia, papules, and inflammatory breakouts. The Pigmentation axis maps melanin distribution patterns, including spots, uneven tone, and post-inflammatory hyperpigmentation. Texture analysis grades pore dilation, comedone density, and acne severity. The Aging axis quantifies wrinkle morphology across forehead lines, periorbital creases, and nasolabial folds. Together, these four axes ensure that no clinically significant skin condition escapes detection.
Quantified Clinical Report Engine — Severity Indexing & Longitudinal Tracking
The report engine produces structured clinical documents that assign severity indices, affected-area proportions, and longitudinal tracking markers to each of the 7 detected skin concerns. Reports are designed for clinical communication — practitioners can present findings with visual clarity, demonstrate treatment efficacy through side-by-side metric comparison, and build patient trust through measurable, data-backed evidence rather than subjective assessment.
Precision Simulation & Aging Trajectory
Aging Trajectory Modeling — Parameter-Specific Degradation Projection
Rather than relying on generalized age-related assumptions, the V8 Ultra constructs a personalized aging trajectory model from the client's actual scan data. The AI engine projects how each specific skin parameter — wrinkle depth, pigment density, elasticity markers — will shift across defined future intervals, producing a quantified aging curve unique to that individual. This data-driven forecast equips clinicians with an objective basis for recommending early intervention timing, replacing subjective clinical judgment with traceable, evidence-based predictions.
Wrinkle Response Mapping — Clinically Informed Outcome Modeling
The V8 Ultra's wrinkle simulation engine constructs a clinically informed model of post-treatment skin condition, mapping how specific wrinkle patterns — forehead lines, periorbital creases, nasolabial folds — would respond to targeted intervention. The output is not a generic 'smoothed' filter but a parameter-driven rendering that reflects realistic treatment outcomes based on wrinkle depth and distribution. Clinicians use these models during pre-procedure consultations to set evidence-based expectations, aligning patient anticipated results with clinically achievable outcomes and thereby reducing post-procedure dissatisfaction.
Staged Pigment Fade Projection — Treatment Pathway Visualization
The V8 Ultra maps pigment and scar improvement as a staged treatment pathway rather than a single endpoint. By modeling how different lesion types — melasma, post-inflammatory hyperpigmentation, acne scarring — respond to sequential treatment phases, the system generates a phased visualization that clinicians use to build step-by-step treatment plans. Each stage shows projected pigment reduction and texture improvement, enabling practitioners to set milestone-based expectations and adjust protocols based on simulated response curves — a planning tool that goes beyond simple before/after imagery.
Enterprise Data Management & Analytics
Four-Terminal Data Pipeline — Role-Based Departmental Access
In a multi-department medical aesthetic practice, diagnostic data must move securely between consultation, treatment, and administrative functions. The V8 Ultra's four-terminal architecture — device, web, tablet, and PC — establishes a controlled data pipeline that routes scan results and analysis reports to each department with appropriate access levels. Consultation physicians retrieve patient imaging on demand; treatment rooms access pre-procedure simulation data; and administrative offices audit the full data trail for compliance verification. Every access point maintains synchronization with the central database, ensuring data consistency across departments while supporting institutional audit requirements.
Audit-Ready Clinical Data Archive — Timestamped & Version-Controlled
The V8 Ultra maintains a structured, audit-ready archive of every patient interaction — from initial scan through treatment progression to outcome verification. Each record is timestamped, versioned, and linked to its source imaging data, creating an unbroken chain of diagnostic evidence. For institutions operating under medical regulatory frameworks, this archived history serves as documentation for treatment justification, outcome auditing, and regulatory inspection — transforming routine file storage into a clinical governance asset.

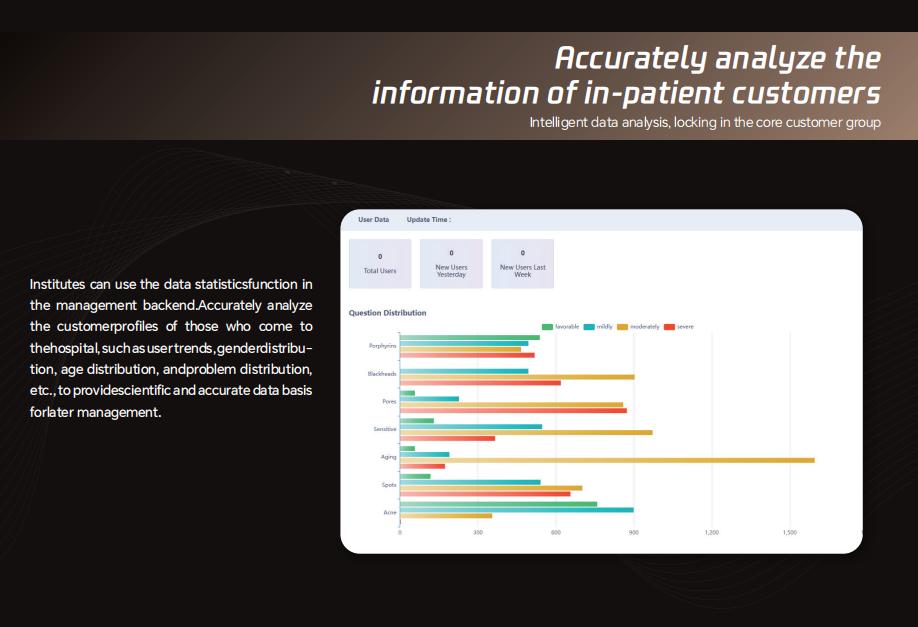

Institutional Analytics Module — Population-Level Clinical Intelligence
Beyond demographic profiling, the V8 Ultra's analytics module mines clinical patterns across the patient population — correlating skin concern distributions with treatment protocols, tracking outcome metrics over time, and flagging underperforming intervention pathways. Institution administrators gain visibility into which treatment categories deliver the highest patient satisfaction, which age cohorts respond best to specific modalities, and where resource allocation can be optimized. Exportable reports — distributed via WeChat, QR code, or PDF — carry institutional branding and clinical data visualizations that reinforce the practice's evidence-based positioning.
Application Scenarios
Medical Aesthetic Institutions & Plastic Surgery Clinics
The V8 Ultra's 40MP DSLR-grade imaging and visual simulation capabilities make it an indispensable pre-consultation tool for medical aesthetic practices. Surgeons and aesthetic physicians can detect early-stage skin concerns with clinical precision, visualize wrinkle restoration and pigment fading outcomes, and provide patients with data-backed treatment plans — increasing acceptance rates and reducing post-procedure disputes through clear expectation management.
Minimally Invasive Medical Beauty Clinics
For clinics specializing in injectables, laser treatments, and minimally invasive procedures, the V8 Ultra bridges the gap between diagnostics and patient communication. The aging prediction and simulation features help practitioners demonstrate the value of preventive treatments, while the quantified report metrics provide objective before-and-after benchmarks that validate treatment efficacy and drive patient retention.
Skin Management Centers & Premium Beauty Clinics
The V8 Ultra elevates skin analysis from a basic check to a premium diagnostic experience. The 40MP high-resolution imagery and AI-generated professional reports create a sense of scientific authority that differentiates the clinic from competitors using standard-resolution analyzers. Multi-channel report sharing extends client engagement beyond the visit, while customer profile analytics support data-driven service personalization.
Aesthetic Training & Education Institutions
The system's 7-dimensional AI output, structured diagnostic axes, and comprehensive reporting modules serve as effective educational instruments. Trainees learn to correlate spectral imaging findings with clinical skin pathology, understand how sensor resolution translates to diagnostic sensitivity, and develop evidence-based treatment planning skills — preparing them for clinical decision-making in modern aesthetic medicine practice.
Technical Parameters
Parameter |
Specification |
Model |
UTECH VENUS V8 Ultra |
Brand |
UTECH (U TECHNOLOGY CO., LTD.) |
Core Technology |
40MP DSLR camera + multispectral imaging + AI large model fusion |
Imaging Resolution |
≥40 million pixels (40 MP) — highest in UTECH lineup |
Camera Type |
Professional DSLR-grade high-definition camera |
Light Sources |
4 spectral bands (Standard LED, Parallel polarized, Cross-polarized, UV ultraviolet) |
Imaging Modes |
12+1 multispectral HD imaging modes |
Texture Fusion |
High-fidelity multi-perspective fusion, no visible stitching marks |
Analysis Systems |
4 systems: Sensitivity, Pigmentation, Texture, Aging |
Skin Detection Dimensions |
7 dimensions (Sensitivity, Pigmentation, Acne, Wrinkles, Blackheads, Pores, Porphyrin) |
AI Engine |
Multi-large-model integration, 7-dimensional analysis in 1 second |
Reference Database |
Tens-of-millions-level skin data |
Simulation Features |
Aging prediction, wrinkle restoration simulation, scar & pigment fading simulation |
Report Functions |
AI-generated professional reports, 7 major skin concerns, quantified scores & area proportions |
Report Output |
WeChat official account, QR code scanning, PDF export |
Multi-Terminal Sharing |
Device terminal, web terminal, tablet terminal, PC terminal |
File Management |
Full life-cycle visual archiving, traceable test data |
Customer Analytics |
User trends, gender/age/problem distribution analysis |
Processor |
Intel Core Series |
Memory |
16GB RAM |
Storage |
512GB SSD |
Display Output |
HDMI interface, maximum 4K output supported |
Output Interfaces |
USB, HDMI, Gigabit Dual Ethernet Port |
Skin Analyzer Power Supply |
DC19V/10A |
Host Power Supply |
DC20V/5A |
Host Power Consumption |
65W |
Skin Analyzer Dimensions |
L560 × W335 × D500 mm |
Host Dimensions |
L128.4 × W128.4 × H47.5 mm |
Operating Temperature |
5°C – 25°C |
Warranty |
1 year |
After-Sales Service |
Online support |
Certifications |
CE, RoHS |
Target Area |
Face |
Application |
Commercial (medical aesthetic institutions, skin management centers, minimally invasive clinics) |
